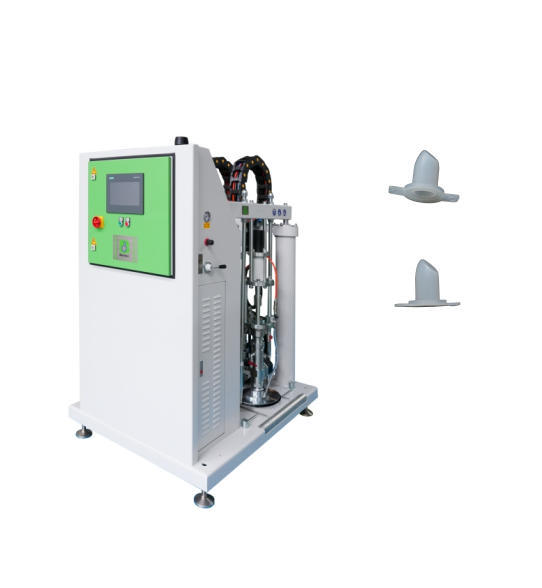

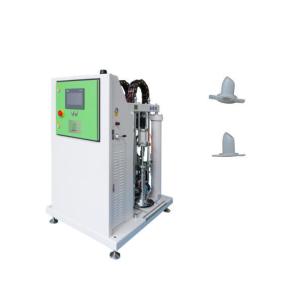

Liquid Silicone Rubber Lipstick Molding Equipment Silicone Feeding Machine
| Parameter |
|
| BETTER LSR Dosing System |
| Charateristics |
A/B ratio 1:1 |
| Item No |
Better 319 |
| Shot volume |
0 - 1000g |
| Material |
20L |
| Ratio |
1:1 |
| Motor source |
Hydraulic |
| Size |
850 x 800 x 1800 |
| Weight |
450KG |
| Mix mode |
Static Mixing |
| Work style |
Plunger pump |
| Application |
ALL |
THE HIGH-PRECISION (LSR) DOSING SYSTEM
1.All the parts are processed with the imported equipment with an original package to ensure the accuracy of the process parts.
2.All core parts are imported from Europe or America,which ensures the stability and service life of the machine.
3.Design for convenient maintenance:the displacement pump device is easy to disassemble.
4.A long life service sealing element.
5.Function guarantee and external valve.
6.Detachable mixer.
7.Material shortage and over pressure alarm safety device.
8.Reproducible color adjustment.
9.The coating is optimized through a special material barrel supporting disk.
10.Material barrel emptying alarm.
11.Provide users with special options for special actual needs.
12.Comply with international and European standards .
13. 200-liter barrel can be changed to a 20-liter barrel.
14.The hard metal ball valve and high-speed steel piston rod with higher durability can be used for liquid materials with different viscosity.
15.Mixing section that can be cooled.
16.Colorant and adding and metering device.
17.Feeding pump can work continously under material assistance.
18.Pressure gauge display in mixed materials.
The two components, once mixed in the desired ratios, are metered to the injection unit by a special delivery system. Better partners with several suppliers of this specialist equipment to provide a turn-key LSR solution. Or, if the customer already has existing LSR delivery equipment, this can be easily interfaced to work with a suitably-equipped Better LSR machine.
Technology
1,Premium design with high cost-performance, suitable for 20L and 200L drums.
2,Siemens control panel with high efficiency and convenient to use, highly stable system.
3,High-precision material measurement, A and B material cylinder adopts synchronous structural design to ensure pressure output balance; Configuring the pressure sensor, ultra-pressure and material alarm, and the monitoring function of the position transducer, A and B pressure regulating valve adjustment to ensure the matching ratio 1:1 output.
4,The power part uses a full hydraulic system, and the hydraulic element adopts international brand products to ensure the stability and high reliability of the feeding delivery. lt effectively avoid leakage and pollution.
5,The pneumatic control valve, the color pump is installed on the host, which is convenient for disassemble.it can be displaced arbitrarily, which is convenient for various machines interchange and use, further reduce the frequency of color replacement, reduce waste.
6,Easy to clean, energy saving, high efficient, low noise, suitable for the transition application of various dual-component liquid silicone.
7,High production efficiency when connected to our LSR injection molding machines but also compatible with injection machinery from other brands.
